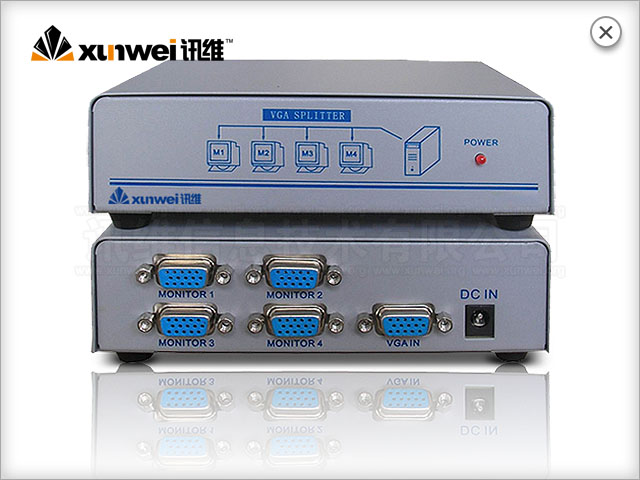

XW-VG0104 is a broadband high-quality VGA video splitter, designed to show the distribution of computer signals and high-performance equipment designed. VGA15HDF the use of input and output terminals and internal circuit is different from the traditional use of the typical current-mode zoom mode bring the buffer, the output more stable, clear images without ghosting, so to minimize the attenuation of signal transmission to ensure that the image signal to the high-security real output.Embedded intelligent control, allowing the use of multiple cascaded splitter to expand the multi-port. The products are mainly used in radio and television projects, multimedia conference room, large screen display works, television teaching at places such as command and control centers.
Characteristic
·With broadband, high-speed, high precision and high output current, low noise, low power consumption of the good performance;
·circuit used is different from the traditional model of a typical current-mode amplification;
·DDC2 standard support;
·the maximum physical resolution of 1600 * 1200 pixels;
·chip using a dedicated driver to support the long-term transmission;
·wide voltage input, the power adapter directly AC80 - 260V AC input;
·System power consumption is less than 2 watts;
·bandwidth 400MHz (-3dB) fully loaded.
Technical Data
- Basic
- Bandwidth100Mhz(-3db) Fully loaded
- Light degree of interference-55dB@5Mhz
- Differential Phase0.05o(RL=150)
- Differential gain0.05%(RL=150)
- Maximum delay spread5ns(1)
- Switching speed180ns
- Video
- Signal input-------
- Signal typeVGA-UXGA video signal
- InterfaceVGA15HDF interface
- Minimum Level0.5Vp-p
- Maximum Level1.0Vp-p
- Impedance75
- Return Loss-30db@5MHz
- Signal output-------
- Signal typeVGA-UXGA video signal
- InterfaceVGA15HDF Interface
- Output Level0.7Vp-p
- Impedance75
- Return Loss-30db@5MHz
- DC compensationMaximum 5mV
- Synchronization-------
- Input / output signal typesTTL
- Input level0V-5.0Vp-p:4.0V
- Output Level5Vp-p
- Input impedance 510
- Output impedance75
- Polar positive or negative (and enter exactly the same)
- Standards
- Power source100VAC ~ 260VAC, 50/60 Hz,International adaptive power
- Power20W
