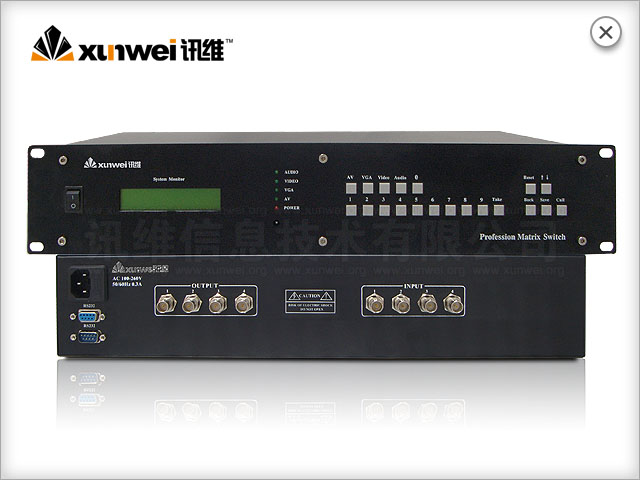

XW-VD0404 is a high-quality broadband 4 into 4 out pure video matrix switchers. Independent component RGBHV input and output terminals, each separate transmission path signal component, a separate switch, the realization of the logic matrix function, with arbitrary choice of the output switch. Attenuation of the signal transmission to a minimum, so that the image signal to output high-fidelity. Professional high-performance processing chip matrix, bring the buffer, the output more stable, clear images without ghosting, embedded intelligent control to provide RS232 control interface and user-friendly software to control the secondary development. Central provides networking and the interface allows the use of multi-matrix cascade in order to expand the multi-port. At the same time with the manual control panel, infrared remote control, power-down at the scene protection and preservation of memory function switch.
Characteristic
· Video Matrix series using our patented technology to achieve high-bandwidth 150M fidelity signal transmission;
· with automatic gain technology, video matrix series can transmit 100 meters long (ordinary RGB cable transmission);
· built-in intelligent power management unit and the redundant power supply, more stable system;
· super intelligent detection system that can interface to control equipment, power systems, the operating system for smart self-test, intelligent error;
· powerful control interface protection, anti-static, anti-lightning, and has 2-way RS232, 1 of the control interface 485 Road;
· more user-friendly menu design, two kinds of keyboard mode of operation, more in line with the operating habits of different customers;
· built-in default mode switch 32 group, more user-friendly customer calls quickly switch mode;
· built-round Tour mode, the intelligent matrix to achieve self-running. In accordance with the client's settings, automatically switching the operation from time to time;
· powerful infrared remote control function, remote control equipment at the same time local and infrared remote control, · can be realized from the computer or remote control operation;
· embedded systems since the restoration of function, operation errors when a customer, the implementation of the functions, restore factory settings.
Technical Data
- Basic
- Bandwidth100Mhz(-3db) Fully loaded
- Light degree of interference-55dB@5Mhz
- Differential Phase0.05o(RL=150)
- Differential gain0.05%(RL=150)
- Maximum delay spread5ns(1)
- Switching speed180ns
- Video
- Signal input-------
- Signal typeComposite video(CVBS)
- InterfaceBNC (optional RCA)
- Minimum Level0.5Vp-p
- Maximum Level1.0Vp-p
- Impedance75
- Return Loss-30db@5MHz
- Signal output-------
- Signal typeomposite videoCVBS)
- InterfaceBNCoptional RCA
- Output Level0.7Vp-p
- Impedance75
- Return Loss-30db@5MHz
- DC compensationMaximum 5mV
- Control Type
- Serial control interfaceRS-2329-pin female D-type interface
- Baud rate baud rate and protocol9600
- Data bit8
- Stop bit1No parity bit
- Serial control port structure2=TX3=RX5=GND
- Wireless technologyIR Infrared Remote Control
Standards
Power source100VAC ~ 260VAC, 50/60 Hz
Power<5W
Chassis Size485mm (L) 260mm (W) 44mm (H)
