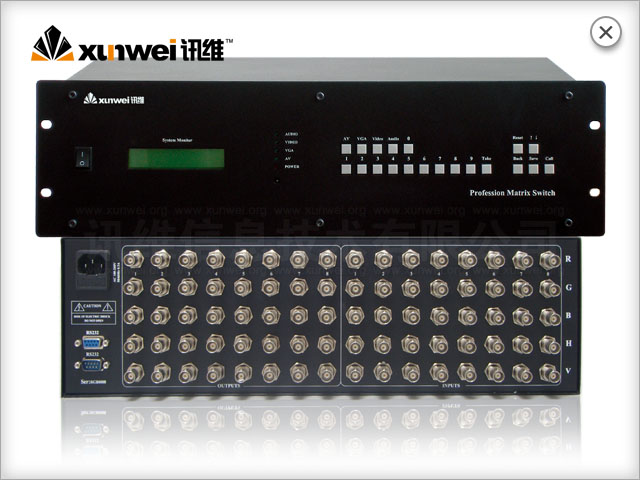

XUNWEI XW-RG0808 independent component RGBHV input and output terminals, each separate transmission path signal component, a separate switch, the realization of the logic matrix function, with arbitrary choice of the output switch. Attenuation of the signal transmission to a minimum, so that the image signal to output high-fidelity. Professional high-performance processing chip matrix, bring the buffer, the output more stable, clear images without ghosting, embedded intelligent control to provide RS232 control interface and user-friendly software to control the secondary development. Central provides networking and the interface allows the use of multi-matrix cascade in order to expand the multi-port. At the same time with the manual control panel, infrared remote control, power-down at the scene protection and preservation of memory function switch.
Characteristic
·RGB Series matrix using our patented technology to achieve high-bandwidth 450M fidelity signal transmission;
·technology with automatic gain, RGB series transmission matrix can be 100 meters long (ordinary RGB cable transmission);
·built-in intelligent power management unit and the redundant power supply, more stable system;
·super intelligent detection system that can interface to control equipment, power systems, the operating system for smart self-test, intelligent error;
·powerful control interface protection, anti-static, anti-lightning, and has 2-way RS232, 1 of the control interface 485 Road;
more user-friendly menu design, two kinds of keyboard mode of operation, more in line with the operating habits of different customers;
·built-in default mode switch 32 group, more user-friendly customer calls quickly switch mode;
·built-round Tour mode, the intelligent matrix to achieve self-running. In accordance with the client's settings, automatically switching the operation from time to time;
·powerful infrared remote control function, remote control equipment at the same time local and infrared remote control, can be realized from the computer or remote control operation;
·embedded systems since the restoration of function, operation errors when a customer, the implementation of the functions, restore factory settings.
Technical Data
- Basic
- gain 0dB
- bandwidth 450Mhz (-3db) loaded
- Light interference degrees -55dB @ 5Mhz
- Differential Phase 0.05o (RL = 150Ω)
- differential gain 0.05% (RL = 150Ω)
- maximum delay spread 5ns (± 1)
- switching speed ≤ 180ns
- Video
- signal input -------
- signal type RGBHV video signals
- interface RGB interface
- minimum level 0.5Vp-p
- maximum level 1.0Vp-p
- impedance 75Ω
- return loss -30db @ 5MHz
- signal output -------
- signal type RGBHV video signals
- interface RGB interface
- output level 0.7Vp-p
- impedance 75Ω
- return loss -30db @ 5MHz
- Compensation DC largest 5mV
- synchronized -------
- input / output signal type TTL
- input level 0V-5.0Vp-p: 4.0V
- output level 5Vp-p
- input impedance 510Ω
- output impedance 75 Ω
- polarity positive or negative (and enter exactly the same)
- Control Type
- serial control interface RS-232, 9-pin female D-interface
- baud rate baud rate and protocol 9600
- data bit 8 bit
- stop bit 1, no parity bit
- port serial control structure 2 = TX, 3 = RX, 5 = GND
- wireless technology IR Infrared Remote Control
- Standards
- Power source 100VAC ~ 260VAC, 50/60 Hz, international adaptive power
- Power ≤ 20W
- Chassis size 485mm (length) × 260mm (width) × 132mm (high)
